Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    Buy cheap Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet from wholesalers

    Buy cheap Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet from wholesalers
    • Buy cheap Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet from wholesalers

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    Ask Lasest Price
    Brand Name : Gainlaser
    Model Number : GL-AC-UV05
    Certification : CE
    Price : Please inquire individually
    Payment Terms : T/T
    Supply Ability : 100 units per months
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    5W 355nm UV Solid State Laser Source


    1. Comparison among 355nm UV Laser, 1064nm Fiber Laser and 10600nm CO2 Laser

    1. The shorter the wavelength, the more concentrated the energy. The greater the energy, the more light that material will absorb. Greater absorption = Better quality mark. Compared with long wavelength 1064nm fiber laser and CO2 laser, 35nm UV laser can make better quality mark;

    2. UV lasers are generally used for intricate, precise marks on the micro level. Their focused wavelengths allow for a high beam intensity and miniscule spot size;

    3. UV laser are especially suitable for laser marking soft materials. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’;

    4. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.


    2. Product Description

    • The laser generates 355nm UV laser with average output power >5W@40KHz;
    • Client can choose laser crystal YVO4 or YAG according to actual need to meet final tech requirements;
    • The laser is filtered twice inside laser resonator, besides client can opt intracavity primary beam expanding, lowering damage possibility of brewster window;
    • The laser has an integrated driving circuit board inside. When connecting with stabilized voltage power supply, UV laser will be generated, improving the operation convenience and laser stability;
    • The laser supports air cooled mode, it has a high effective aluminum cooling module with 7 fans and short wind pathway, guaranteeing quick cooling effect and device work normally;
    • Adopting non-adjusting-frame manufacturing tech, the mechanical performance is more reliable and can work stably longer.
    • With cold laser processing and a small heat-affected zone, it can achieve high-quality processing.
    • The overall machine has stable performance, supporting the long-term operation
    • UV Laser Marking system provide permanent,high grade readable codees reagardless of product positioning.

    • The design of a UV laser allows it to be a practical solution for marking plastics and glass. Moreover, the UV laser machine can engrave a vast number of materials, from metals to paper.


    ​3. Technical Parameter

    Laser CrystalNd:YVO4Spatial ModeTEMoo(M2<1.2)
    Wavelength355nmPolarization Ratio:>100:1 Horizontal
    Output Power>5W@40KHz1/e2 Beam Diameter @ Output0.6mm
    Max pulse energy>0.125mJ@40KHzBeam circularity≤96%
    Pulse repetition frequency10-150KHzCooling ModeAir Cooling
    Pulse duration<15ns@30KHzAmbient temperature18℃ - 35℃
    Pulse-to-pulse stability<3%Size395*142*125mm
    Average power stability<3%Net weight7.5KG

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    4. Product Application

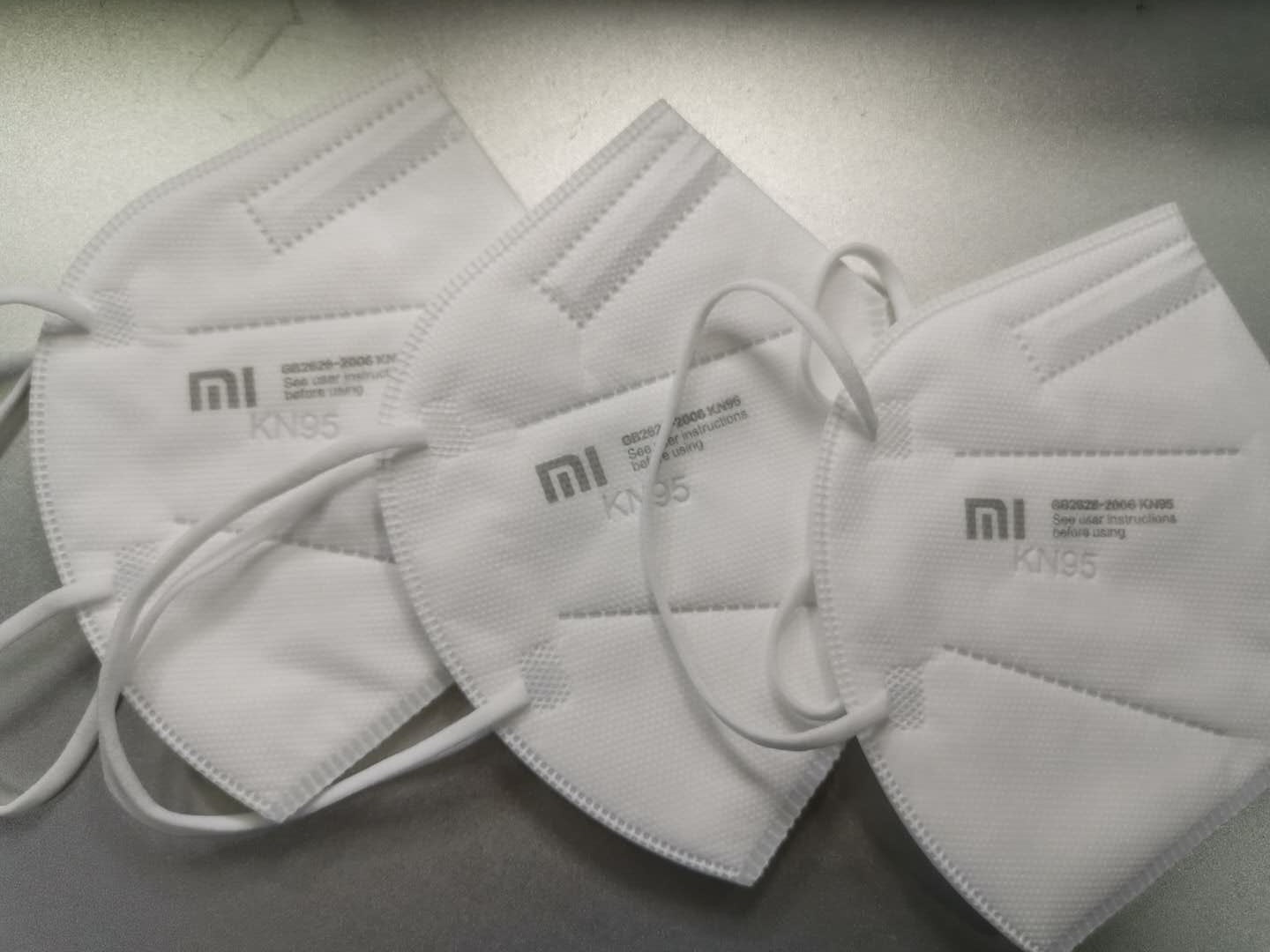

    1) KN95 Mask Marking


    2) Gobo Glass

    3) Metal laser marking

    UV laser can mark identification on common metals, such as stainless steel, copper, aluminum, gold, silver, carbon steel, various alloy steel, tool steel, hard alloy, aluminum alloy, chromium plating, nickel plating, zinc plating, various grinding, polished metal surface, etc. The identification can be logo, product name, technical parameter, supplier name, safety matters, etc.


    4) Plastic material processing

    UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    6) Ceramic Marking

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet

    7) Leather Marking

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    8) Glass Coating Removing

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    9) Wood Marking

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    10) Fruit Marking

    Dpss Uv Laser Marking Machine 0.125mJ For Steel Copper Sheet


    5. About us

    Shenzhen Gainlaser Laser Technology Co., Ltd. is a professional manufacturer of DPSS nanosecond lasers(355nm, 532nm & 1064nm), DPSS picosecond lasers(1064nm), scan head(355nm, 532nm, 1064nm & 10.6μm) and laser marking machines in Shenzhen, China. Since 2002 established, our group company has been engaging in laser equipments.


    Our R&D team is led by Professor Huang Guobiao, former director of SSL Research Center of HUST University, who developed the first picosecond laser in China. Gainlaser has a 100-class dust-free purification laboratory and production workshop, equipped with complete instruments and equipments for solid-state laser testing and auxiliary production. We owns the independent intellectual property rights.


    We have complete mechanical processing and sheet metal processing capabilities, and high related supporting capabilities of laser equipments. Besides, we provide complete after-sales services, which responds to clients' after-sales needs quickly.
