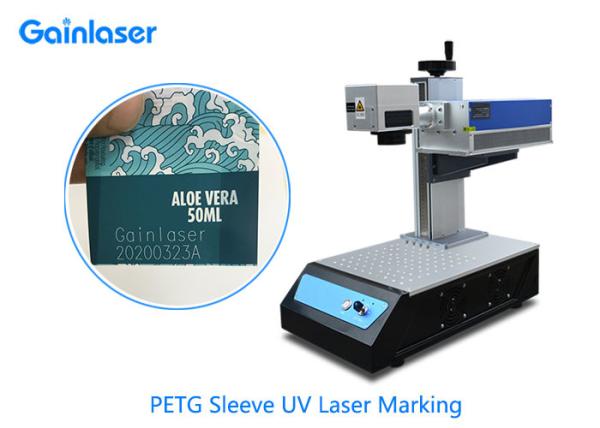

Portable Laser Marking Machine Nameplate 5W 355nm

1. What’s UV Laser Marking Machine?

UV Laser Marking Machine is a UV laser with the short wavelength 355nm to generate an intense energy beam breaking the molecular bonds and vaporize the substrate leaving a permanent mark without contacting the substrate. It is very suitable for sensitive and critical material(such as plastic , leather, etc.) marking with the advantage of its "cold marking" methods. Because it offers a higher absorption rate than fiber and CO2 lasers and are less likely to burn the surrounding material because they produce less heat. This is why UV laser is also referred to as “cold processing method”, while fiber and CO2 lasers are called as ‘thermal processing method’. Fiber / CO2 laser marking machine can alter or even burn some heat-sensitive materials, like plastic, leather, etc. This is because the laser energy is not fully absorbed, allowing too much light to pass through without marking the material. You’re left with indecipherable logos, unreadable barcodes, or damaged parts.

2. Product Highlight

• 355nm DPSS UV laser with average output power ≥5W@40KHz, pulse width ≤15ns@40KHz;
• American brand semiconductor module, high working stability, laser lifespan ＞20,000 hours;
• Mark plastic, glass, metals, wood, leather, fruits, paper, etc.;
• Short wavelength 355nm, generating tiny focused laser spot(φ ＜0.01mm), achieving high precise marking;
• Cold processing method, small heat affected area, little thermal deformation on material surface;
• Small size and light weight, an adult male can move the machine easily;
• Professional JCZ control board and EZcad2 software, easy operation & excellent functions;
• High repetitive precision 0.02mm galvo scanner with clear aperture 10mm, high marking quality;

• Structure-optimized aluminum profile cooling module, in-built 7 cooling fans, quick cooling effect.

3. Technical Parameter

4. UV Laser Parameters

5. UV Laser Marking Samples
1) Plastic Materials

UV laser can apply to most universal plastic and some engineering plastics, such as PP, PE, PBT, PET, PA, ABS, POM, PS, PC, PUS, EVA, etc., and plastic alloy, like PC/ABS and other material. The marking is clear and bright, and can mark black and white color on natural color plastic, white plastic, colored plastic and black plastic. Successful commercialized application in the plastics include animal ear tag, light switch cover, cosmetic packaging material, vehicle interior button and doorknob, instrument panel, ABS keyboard, HDPE, PET and PVC rigid container and container cover, nylon and PBT automobile and non-automobile electrical connector, engine hood element such as fuse box and air cap, anti-counterfeit labels, container lock catch, stationery, home appliance shell, etc.

2) Glass Material Processing

Since the focal spot of UV laser is very tiny and processing temperature is low, furthermore as a non-contact marking technology, UV laser is very suitable to mark glass material. Successful UV laser commercialized applications include wine bottle, flavour bottle, drinking bottle and other industries glass bottle package and glass tableware, glass crafts gifts, crystal marking, etc. Besides marking glass directly, UV laser can also remove paint or coat on glass to form text or pattern, like logo, number or other patterns;

3) Metal Marking

4) KN95 Mask Marking

5) Other Material
