    6000 Mm/S Fiber Laser Head

    Ask Lasest Price
    Brand Name : Tenfotai
    Model Number : TFT-FSP-10
    Certification : CE
    Price : Please inquire individually
    Payment Terms : T/T
    Supply Ability : 1000 sets per month
    Delivery Time : Within 5 days
    • Product Details
    • Company Profile

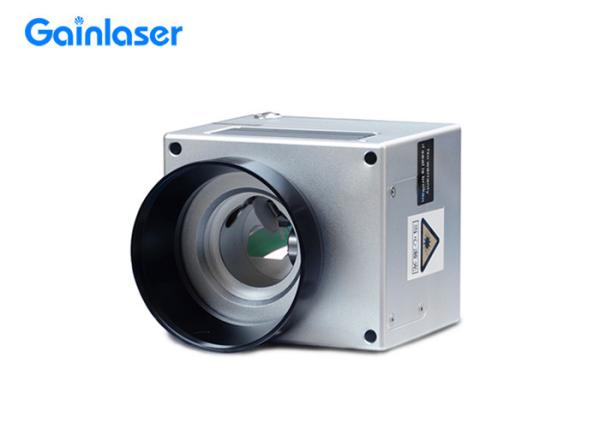

    6000 Mm/S Fiber Laser Head

    Fiber Laser Galvo Scan Head


    1. Product Description

    • TFT-FSP-10A is a 2-dimensional scanning system with 10mm incident light spot, widely used in laser processing, laser marking, laser welding, 3D printing and other fields;
    • The product integrates servo system, electric motor manufacturing and precision machining into itself, having high performance and high reliability;
    • Unique structure design ensures excellent heat transfer performance and shielding performance. Each component is manufactured according to the strict standard of low drift and high stability;
    • Adopting universal XY2-100 communication protocol to receive digital command, it’s applicable to different cards.

    6000 Mm/S Fiber Laser Head

    6000 Mm/S Fiber Laser Head


    2. Technical Parameter

    Dynamic Property:

    Tracking Error0.25ms
    Long Time 8-hour Drift< 30 mrad
    Zero Point Drift<15 urad/k
    Gain Drift<50 ppm/k
    Photoelectric Property:
    Clear Aperture10 mm
    Scanning Angle±0.35 rad
    Nonlinearity3.5 mrad
    Basic Property:
    Mirror Wavelength1064 nm
    Marking Speed4000 mm/s
    Positioning Speed3 m/s
    Power Requirement

    ±15V DC, 3A each path

    Working Temp

    25℃±10

    Interface protocol

    XY2-100


    3. Mechanical Drawing


    6000 Mm/S Fiber Laser Head


    4. Our Scan Head Production Workshop

    6000 Mm/S Fiber Laser Head6000 Mm/S Fiber Laser Head6000 Mm/S Fiber Laser Head
